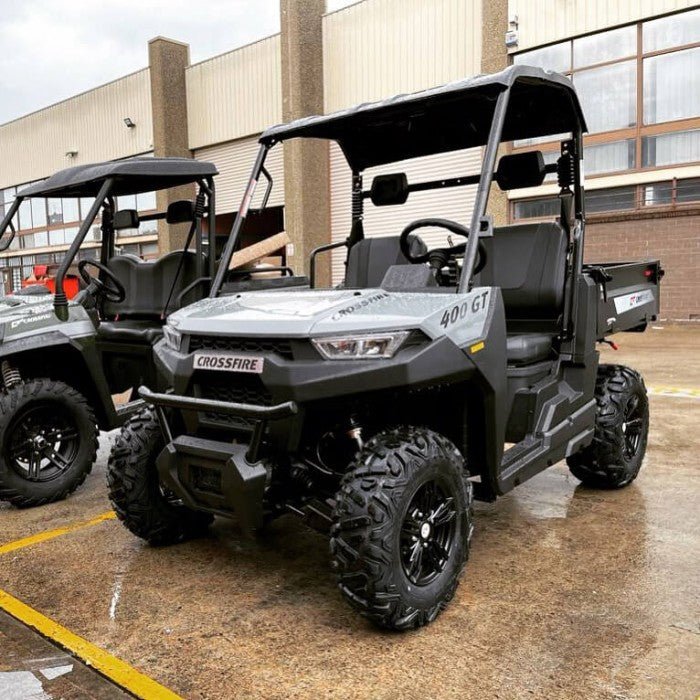

Description
400GT Standard Features:
- 23 HP Engine with electronic fuel injection and liquid cooling Capacity is 352cc
- Automatic CVT shaft driven transmission
- On demand 4WD with locking differential
- Rugged 25 in. AT tires with hydraulic disk brakes
- Compact design with comfortable bench seating
- Tows up to 200KG including trailer weight (Low Range only)
- All LED Lights: Low Beam & High Beam
- Daytime Running Lights (DRLs)
- Tilt Tray
- Brush Bars
| Specifications | |
|---|---|
| Engine | 23 HP Engine with electronic fuel injection and liquid cooling Capacity is 352cc |
| Drive | On demand 4WD with locking differential Turf mode (lock and unlock the rear differential) Dual Range Transfer Case (Low, High, Neutral and Reverse) |
| Transmission | Automatic CVT shaft driven transmission |
| Dual Fuel | Dual Fuel Filtration (1 in tank and 1 inline) |
| Air Box | Dual Filtration Air Box with Prefilter |
| Suspension / Brakes / Tyres | |
|---|---|
| Suspension Front | Twin-A Arm Independent Suspension |
| Suspension Rear | Twin-A Arm Independent Suspension |
| Brakes Front | Hydraulic Disk Brakes with Drilled and Slotted Vented Rotors and Single Piston Calipers |
| Brakes Rear | Hydraulic Disk Brakes with Drilled and Slotted Vented Rotors and Single Piston Calipers |
| Tyres Front | AT 25X 8-12 |
| Tyres Rear | AT 25X 8-12 |
| Dimensions | |
|---|---|
| Product Dimensions | 274cm (Length) x 150cm (Width) x 194cm (Height) |
| Ground Clearance | 28cm |
| Turn Radius | Outer: 4900 mm 193 in Inner: 3700 mm 146 in |
| Wheelbase | 188cm |
| Towing | 200kg (Low Range) 11 kg Hitch down load limit |
| Seat Height | 46cm |
| Dry Weight | 505kg |
| Fuel Capacity | 22L |
| Cargo Bed | 90cm (Length) x 131cm (Width) x 28cm (Height) |
| Accessories | |
|---|---|
| Winch | $450 |
| Safety | |
|---|---|
| Safety | Using ATV with Passenger greatly increases risk of Rollover. Speed should be kept under 15 km/h. |
| Warranty | |
|---|---|
| 12 months up to 24 months* | * If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services. |
