Description

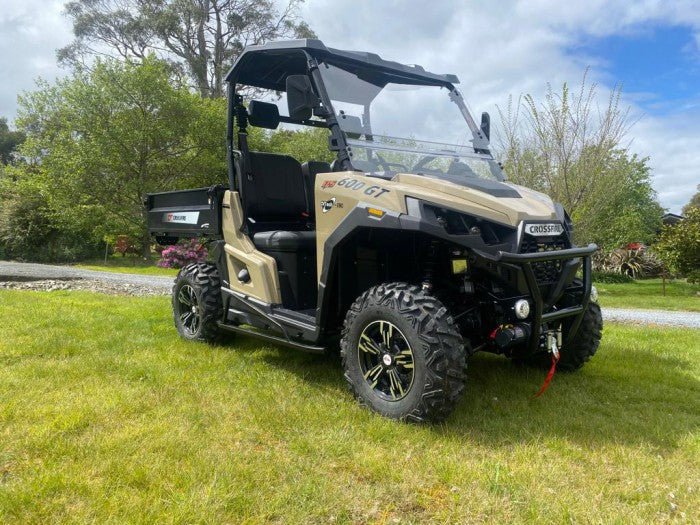

600GT Standard Features:

  • 4WD Dual range transmission
  • Electric Power Steering (EPS)
  • Cv Tech Canadian made CVT transmission
  • Turf Mode (lock/Unlock) rear differential
  • Folding Windscreen
  • Roof
  • Winch
  • Aluminium wheel with 25 inch off-road tire
  • Extended steel tray
  • Mesh door
  • Towing Pack
  • Side protection brush bars
Specifications
Model 600GTeps
Engine Engine 499.2cc LH191M, Single cylinder, 4 stroke, SOHC, liquid cooled, 4 valve
Clutch CV-Tech, made in Canada
Transmission CVT Cv Tech Made in Canada Transmission L-H-N-R-P
Start Type Electric starting
Compression Ratio 10.3:1
Fuel System EFI
Bore and Stroke 91mm×76.8mm
Rated Power 39Hp/6700~6900(kw/r/min)
Max Torque 46.5/5750 (Nm/r/min)
Suspension / Brakes / Tyres
Suspension Front Twin-A arms independent suspension
Suspension Rear Twin-A arms independent suspension
Brakes Front Disk brake
Brakes Rear Disk brake
Tyres Front AT25×8-12
Tyres Rear AT25×10-12
Dimensions
Product Dimensions 273cm (Length) × 146cm (Width) × 189cm (Height)
Ground Clearance 280 mm
Wheelbase 1855 mm
Loading capacity (Combined Rider & Payload) 350 kg
Seat Height 46cm
Dry Weight 580 kg
Fuel Capacity 26 L
Tray Size 148cm x 120cm x 42cm
Safety
Safety Using UTV with Passenger greatly increases risk of Rollover. Speed should be kept under 15 km/h. Seat belts must be worn and door nets closed
Warranty
12 months up to 24 months* * If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services.
