Description

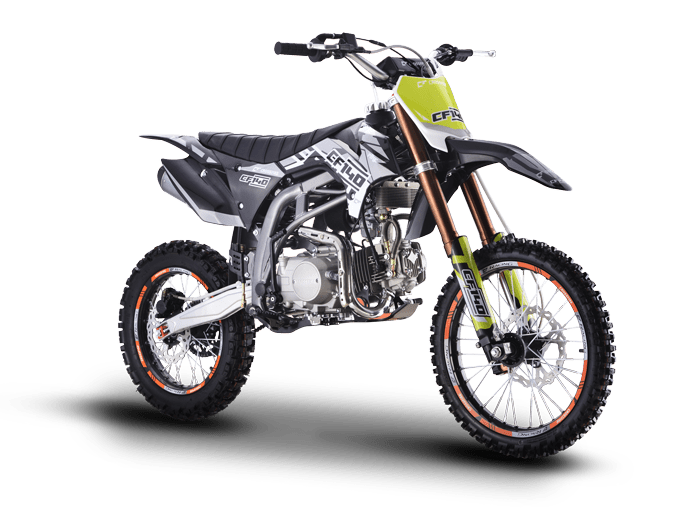

CF140 Standard Features:

    • 140CC YX Motor
    • Electric and Kick start
    • Silenced exhaust system with removable baffle
    • Gripper performance seat
    • HSK Brakes
    • Rim Tapes
    • CNC machined triple clamps
    • Crossfires most advance frames
    • Alloy Fatbars
    • High Flow Cooler
Specifications
Engine Displacement YX 140cc
Engine Type Horizontal, Single cylinder, 4-stroke, oil cooled, electric/kick start
Bore & Stroke 56mm X 57 mm
Compression Ratio 9.8:1
Power Max. 8.2KW/8000r/min
Torque Max. 10.2N.m/7500r/min
Fuel Consumption ≤367g/KW.H
Starting Mode Electric/kick start
Clutch Mode Wet, multi-plate, constant mesh
Gearshift Mode 4 gear
Ignition Method CDI
Carburetor PZ27
Sprocket Ratio 420-15/420-41
Handle Bar Alloy
Triple Clamp CNC alloy
Frame Backbone type, reinforced steel tube+sheet metal
Swing Arm Reinforced sheet metal
Suspension / Brakes / Tyres
Front Fork 45/48- 735 mm
Suspension Rear 325 mm,built-in air bag recovery damping adjustable
Brakes Front Disc, Front: 220 mm
Brakes Rear Disc, Rront: 190 mm
Wheel Front Alloy Rim, Front: 1.60-17
Rear Wheel Rear: 1.85-14
Tyre Front 70/100-17
Tyre Rear 90/100-14
Dimensions
Package Dimensions 1420 x 430 x 640 mm
Fuel Tank Capacity 5.2 L
Seat Height 830 mm
Wheelbase 1220 mm
Clearance 310 mm
Product Dimensions 1790 x 730 x 1100 mm
N.W. / G.W. 75kg / 87kg
Warranty
6 months up to 12 months* *If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc. Please make sure you have proof of services.
